- High-strength U-shaped cross section boom.
- Luffing telescopic operation controlled independently by advanced post-compensate hydraulic technology.
- Ultra-long outrigger span ensures increasing stability.
- Effective mirror and rear view camera combinations improve overall visibility.

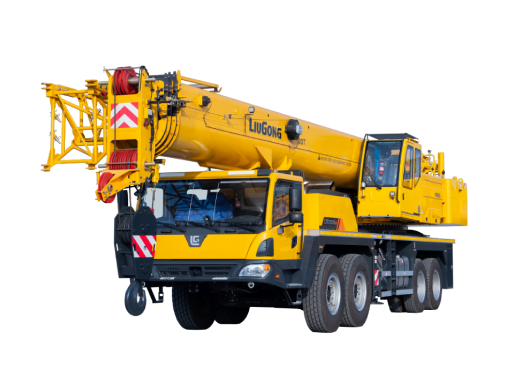

TC750C5
Max. lifting capacity:
75 t
Max. lifting height:
48.3 m
TC750C5
Unit：
- Metric
- U.S
Specifications
| Max. rated lifting capacity | 75 t |
| Max. rated lifting torque of basic boom | 2958 kN·m |
| Max. rated lifting torque of full extended | 1693 kN·m |
| Max. lifting height of main boom | 48.3 m |
| Max. lifting height of Jib | 48.3+17.5 m |
| Overall net weight | 46000 kg |
| Max. single rope speed | 130 m/min |
| Time of telescoping boom | 105 s |
| Time of elevating boom | 50 |
| Max. slewing speed | 2 rpm |
| Max. travel speed | 85 km/h |
| Gradeability | 46% |
| Min. turning diameter | 24 m |
| Dimensions (L x W x H) | 14820x2800x3780 mm |
| Outrigger longitudinal span | 6275 mm |
| Outrigger transverse span | Full:7900 / Half:5200 mm |
| Sections of boom | 5 |
| Length of main boom | 48 m |
| Length of jib | 17.5 m |
| Type | ISL9.5-385E51A |
| Engine Model | QSB6.7-C220 |
| Rated power | 282/164 kW |
| Max. rated torque | 1600/949 N·m |
