- With its fast cycle time and large Payload capacity, DR50C move more tons per hour allowing customer to maximize return on investment.
- LiuGong offers one of the lowest empty vehicle weight and a durable lightweight frame in the market today.
- Full hydraulic control system. Independently control of brake circuit, we add the relay valves which improve response speed, and increase vehicle safety.
- The DR50C is equipped with Cummins QSX15 engine, with low failure rate and the highest fuel economy compared to competing products. Service life more than 60,000 hours, which can easily cope with various heavy load conditions.

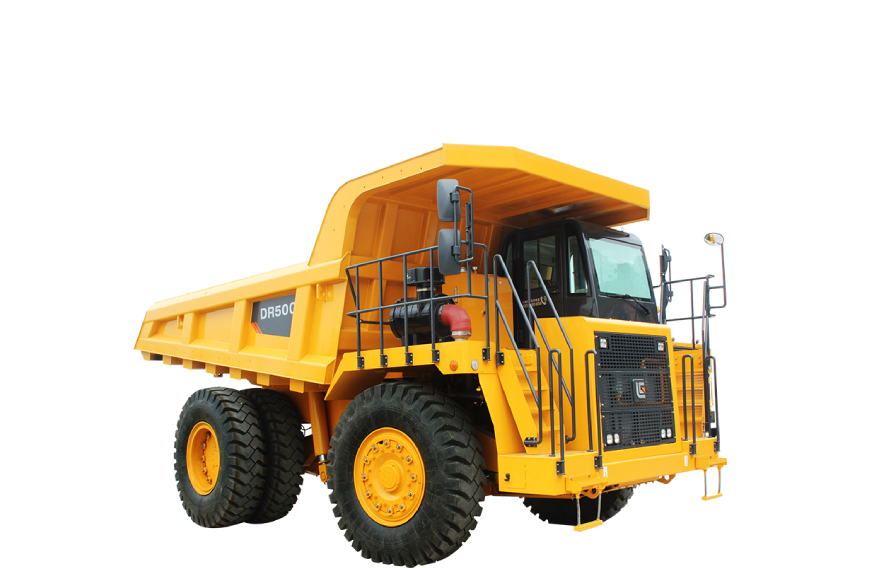

DR50C
Rated power:
388 kW
Rated operating load:
45000 kg
Body capacity:
21.8-29.8 m?
DR50C
Unit：
- Metric
- U.S
Product Features
DR50C
DR50C
Specifications
| Operating weight | 36800 kg |
| Rated load | 45000 kg |
| Gross Machine Weight | 81800 kg |
| Struck Capacity | 21.8 m? |
| Heaped capacity (SAE 2:1) | 29.8 m? |
| Engine Model | Cummins QSX15 |
| Emission regulation | Tier 3 / Stage III |
| Rated power | 388 kW (528 hp) @ 2100 rpm |
| Transmission Model | Allison |
| Type | Automatic |
| Maximum travel speed | 56 km/h |
| Dimension | 8930x5270x4310 mm |
| Tire | 15.00/3.0-35 |
