- With zero tail swing (ZTS), our 5T range can work in confined spaces. This design significantly reduces the likelihood of collisions making for a safer working environment.
- From the ergonomically positioned non-slip pedals to the multi-functional joysticks, the cabin terior represents a masterclass in design.
- When dozer float is activated, the dozer blade will automatically follow the contours of the ground. This functionality enables operators to perform fine grading and clean-up activities with maximum ease and control.

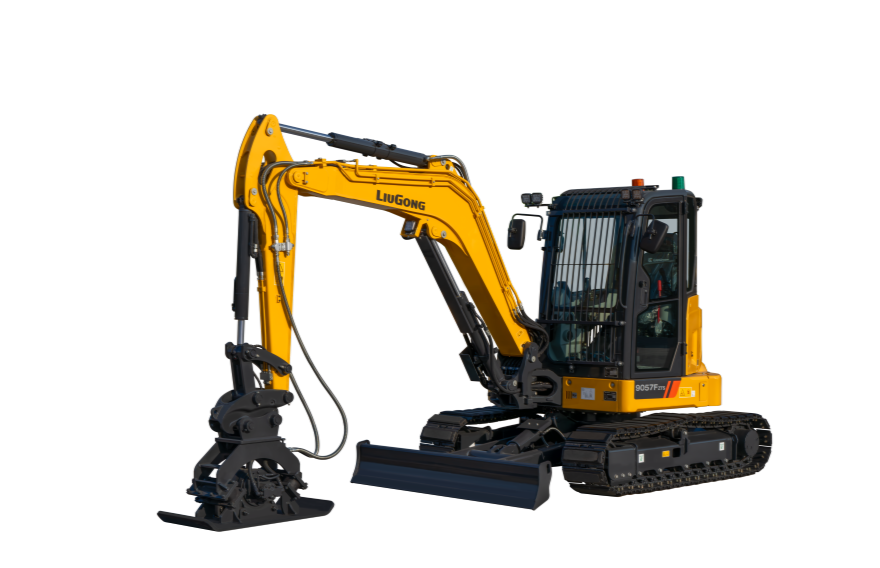

9057FZTS
Operating Weight:
5,570 kg
Rated Power:
35.5 kw@2,200 rpm
Bucket Capacity:
0.06-0.26 m?
9057FZTS
Unit：
- Metric
- U.S
Specifications
| Operating Weight | 5,570 kg |
| Rated Power | 35.5 kw@2,200 rpm |
| Stadard Bucket Capacity | 0.16 m? |
| Bucket Capacity | 0.06-0.26 m? |
| Travel Speed (Hight/Low) | 4.2/2.4 km/h |
| Swing Speed | 9.6 r/min |
| Bucket Digging Force(ISO) | 44 kN |
| Arm Digging Force(ISO) | 27 kN |
| Shipping Length | 5,650 mm |
| Shipping Width | 1,960 mm |
| Shipping Height | 2,550 mm |
| Shoe Width | 400 mm |
| Max. Digging Reach | 6,105 mm |
| Max. Digging Reach on Ground | 6,040 mm |
| Max. Digging Depth | 3,630 mm |
| Max. Vertical Wall Digging Depth | 2,800 mm |
| Max. Cutting Height | 5,571 mm |
| Max. Dumping Height | 4,000 mm |
| Min. Front Swing Radius | 2,558 mm |
| Engine | Yanmar 4TNV86CT-PLY |
| Emission Regulation | Stage V/ Tier 4F |
| Main Pumps Total Flow | 149.6 L/min |
| Relief Pressure, main | 27.4 MPa |
